Stock Code:
HDI HOT2 YANMAR

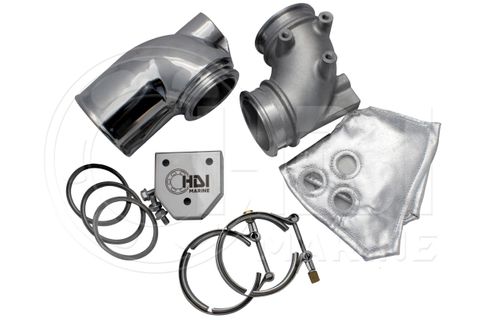

Yanmar 4LH Exhaust Mixing Elbow & Riser Kit

$2,645.00 excl. gst
Make an Enquiry

Description

This HDI Marine Kit replaces the following parts

Hot2 (Yanmar Hot Exhaust Bend P/N 119175-13200 / 119175-13201)

VB (Yanmar Mixing Elbow P/N 119773-13500 / 119773-13501)

2 – VBC Hose Clamps (OEM P/N 119773-13300)

MAT2 – Wool Mat / Heat Blanket (OEM P/N 119175-13220)

Shield – Heat Shield (OEM P/N 119778-13300)

Fits the following engines: 4LHA-STE / 4LHA-STE-YA / 4LHA-DTE / 4LHA-DTZE / 4LHA-HTE / 4LHA-STP2

Precision CNC machined investment cast 316 stainless steel

Purchase Includes 2 gaskets that replace Yanmar PN 118773-13250 ($8.30)

HOT2 Dimensions

3.5” (89mm) Flange Diameter

2.625” (72mm) Bore Diameter

VB Dimensions

1 ¼ BSPT Thread water inlet

4” (105mm) discharge diameter

3 1/2" (89mm) Flange diameter

Precision CNC machined investment cast 316 stainless steel
